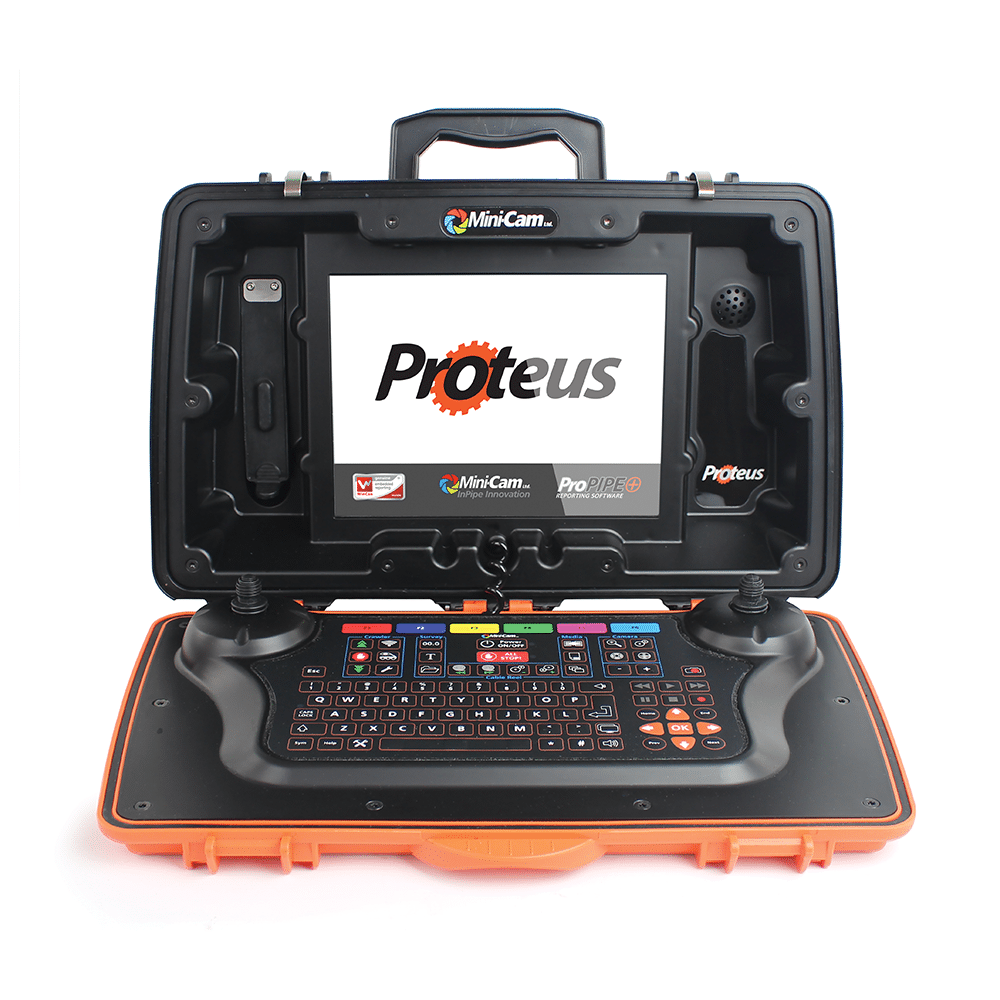

Proteus Control Unit

CCU208

Use the Proteus control unit to view, record and annotate inspection footage from any composite video source.

Proteus Control Unit

Key features

Illumination

Increase or decrease the intensity of the ultra-bright camera LEDs.

Configure Preferences

Easily and quickly configure the control unit to your specific requirements using the various menu options. Set language, date and time; establish file formats and naming conventions; adjust camera parameters; choose interface theme, enable power saving options and update firmware.

Hot Keys

User friendly, multi-function hot keys control an intuitive on-screen display of the numerous features.

Sonde Settings

Set the frequency of the sonde transmitter to 33kHz, 512Hz or 640Hz.

Write Screen Text

Type and store up to 16 pages of on-screen text. Customise text colour, position and background colour.

Screens Intensity

The brightness, colour and backlight intensity of the internal display can be adjusted to suit the environment in which the system is being used.

Joystick Controls

The left hand joystick controls crawler
manoeuvrability. Movement of the Pan & Rotate camera is smooth and effortless using the right hand joystick control. Perform a 360° endless rotation and pan the camera +/- 135°.

Survey Features

Access embedded reporting software to create detailed on-site reports.

Offload Data

Copy video, images and data to USB or SDHC media for easy transfer to PC and seamless integration with WinCan reporting and querying capabilities.

Generate Reports

Use optional reporting module to create an inspection report, then transfer it to USB media for on-site delivery.

Alternative Languages

The Proteus CCU is currently available with keyboards in English, French, German and Russian.

Share Files

WiFi enabled to allow remote access to stored images and data. Users can instantly share PDF reports, images and footage via email, or upload WinCan Reports via the Cloud to WinCan Web for secure, immediate team-wide access online.

Specification

Download specification
  • Dimensions (LxHxW)

    430 x 280 x 150mm

  • Weight

    5.5kg

  • Display

    10” XGA (1024 x 768 pixels) Sunlight viewable

  • Internal Memory

    32GB (expandable to 128GB)

WiFi Enabled

Sunlight Viewable Display

Lithium-Ion Battery

WinCan Embedded Software

ProPIPE+ Reporting

File Sharing

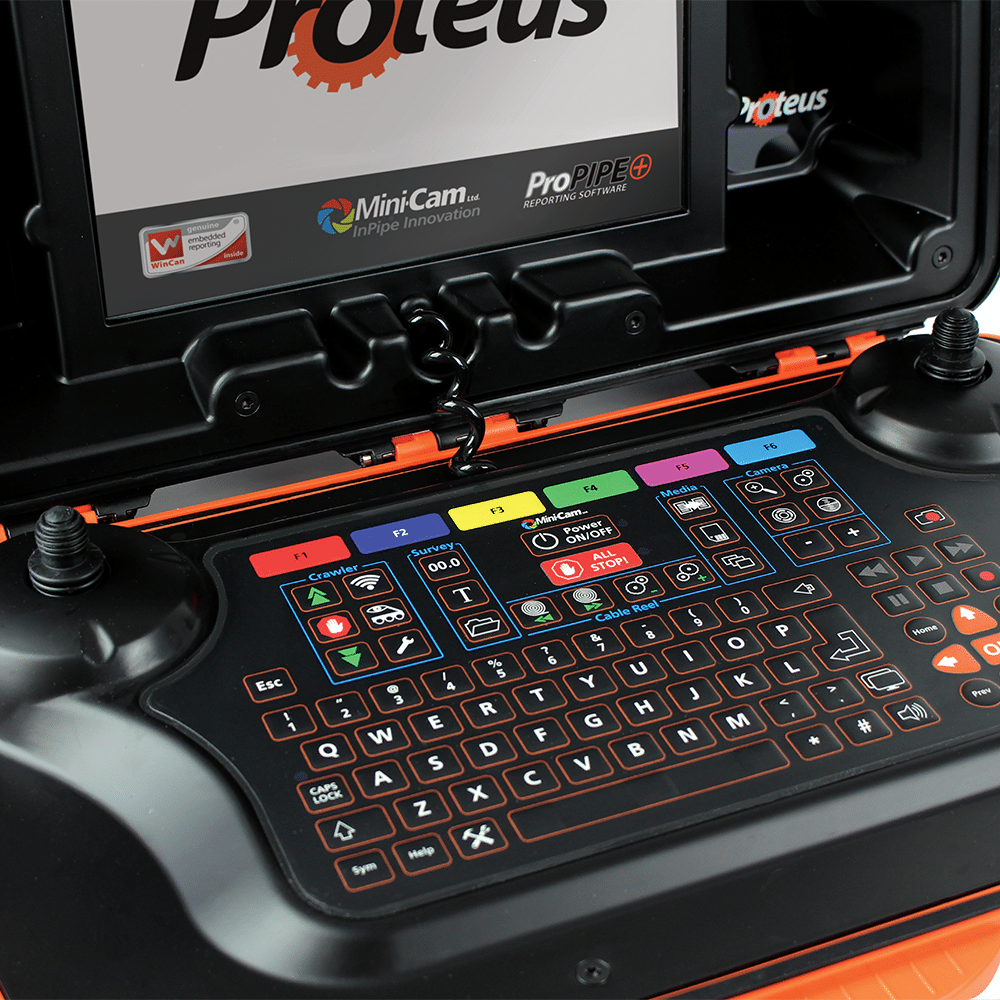

Functionality at your Fingertips



Feature rich, the Proteus control units have integral joystick/s for camera control and an ergonomic soft-touch keypad. User friendly multi-function hot keys control an intuitive on-screen display, to enable quick and accurate navigation of the numerous features which all come as standard on the brain of the SOLOPro+ system.

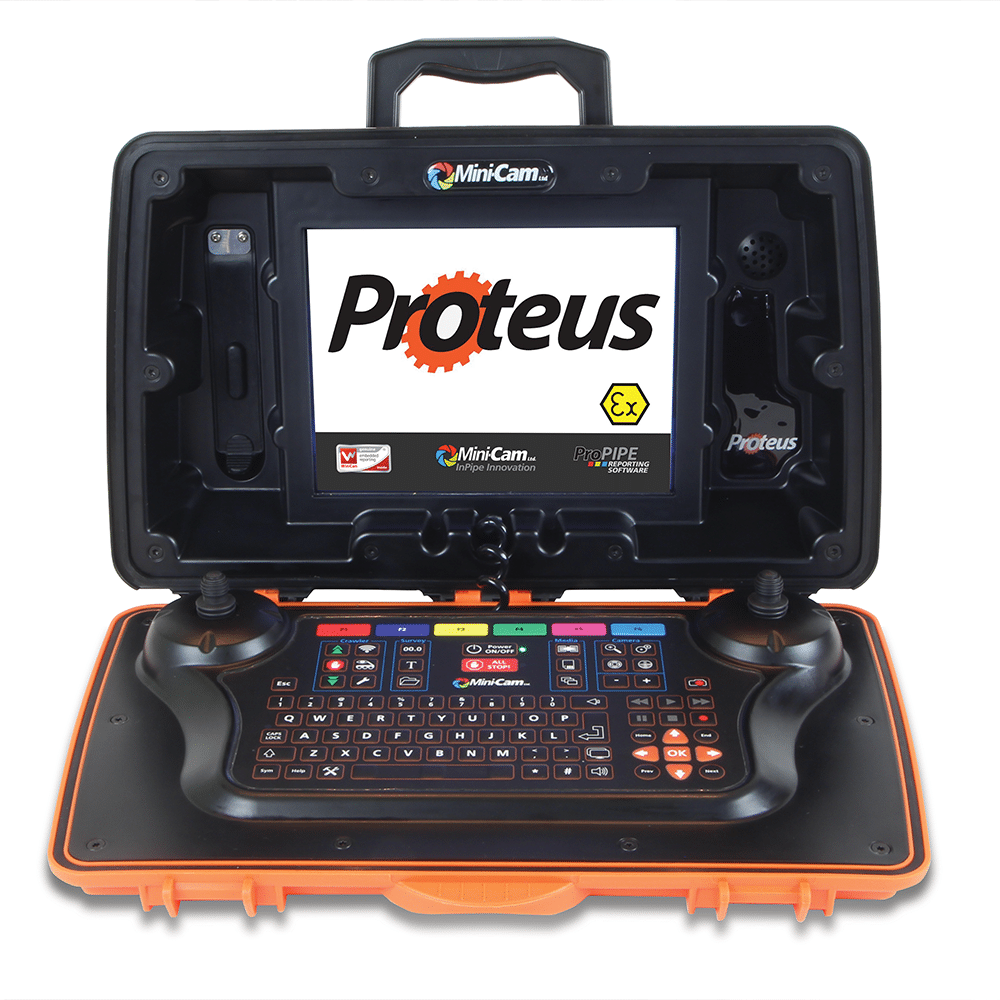

Available in ATEX Zone 1

Uncompromising performance and safety, giving you a clear, sharp eye into the unknown

Proteus ATEX Zone 1

Much More

Than Meets The Eye
