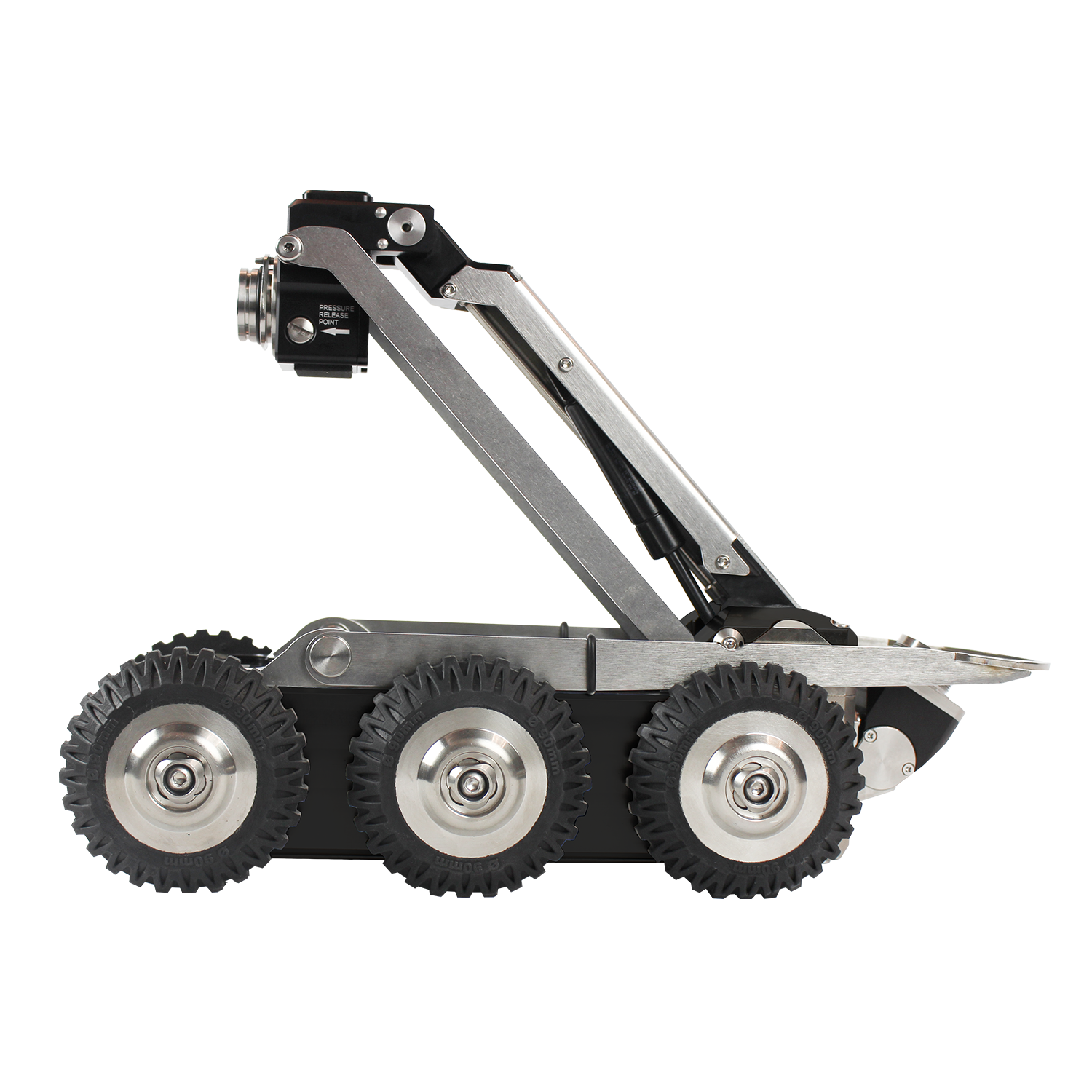

Proteus HD Mainline Crawler

CRP140-HD

Our feature-rich mainline tractor has been upgraded to carry our new CAM090-HD 1080p camera. For use in relined DN150 and up pipes with the optional PCC01 Crawler Cradle it will even centre the camera in pipes up DN1000.

Proteus HD Mainline Crawler

Key features

Powerful Multi-Frequency Sonde

Strong signal Sonde with multiple frequencies and pulsing function, you can locate CRP140 underground in a wider range of pipe materials.

Lower/Raise Hook-eye

With our large hook-eye arm we make it quick and easy to lower and raise CRP140-HD into the line and back out.

High bandwidth communications

Low-noise and Low-latency communication over easily repairable copper cable.

6-wheel drive

With adaptable quick-change wheel configurations you are able to successfully navigate in even the most challenging pipe conditions.

Motorised Camera Elevator

Adapt from relined DN150 to DN600 without needing to remove from the line to reconfigure.

Specification

Download specification
  • Dimensions

    360 mm x 133 mm x 108 mm

  • Weight

    11.5 kg

  • Sonde

    33kHz / 512Hz / 640Hz

  • Pipe Sizes

    Centres Camera in relined DN150 to DN600

Carrying over all the great features of our proven CRP140, our latest crawler continues to provide the versatility you are used to with Proteus, with our included powered camera elevator the CRP140-HD can adjust the camera position in the pipe for changes in diameter or flow while on the move, without needing to remove the tractor from the pipe and when you need to fit into a relined DN150, the camera elevator tucks down into the body of the crawler and doesn’t need to be removed. With CRP140-HD’s large hook-eye we even make it easy to lower and raise the tractor into the pipe, further reducing set up time and saving you even more time at the start and end of the day.

With powerful 6-wheel drive and a wide range of wheel size and tyre material options, Proteus continues to be able to comfortably navigate a wide range of conditions and sizes in any pipe material and with our strong multi-frequency sonde transmitter, you can even locate the CRP140 further underground and in a wider range of pipe materials.
