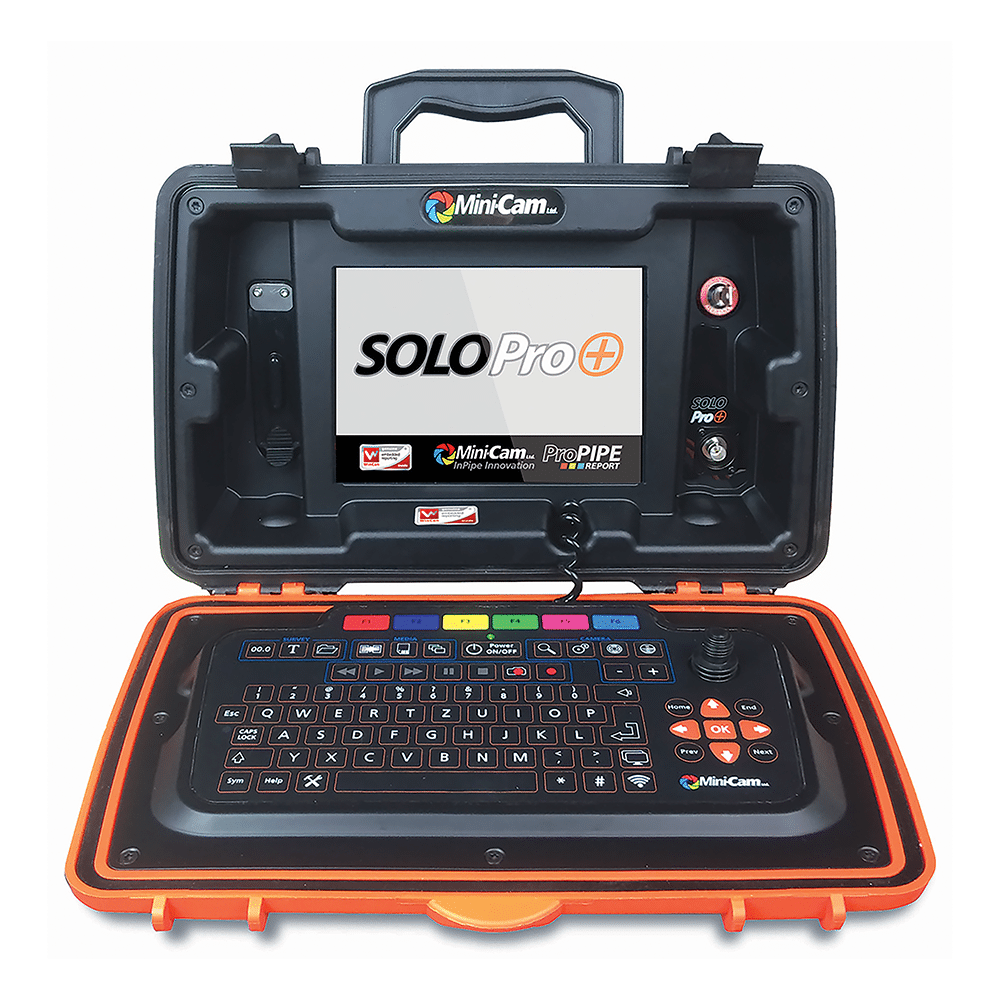

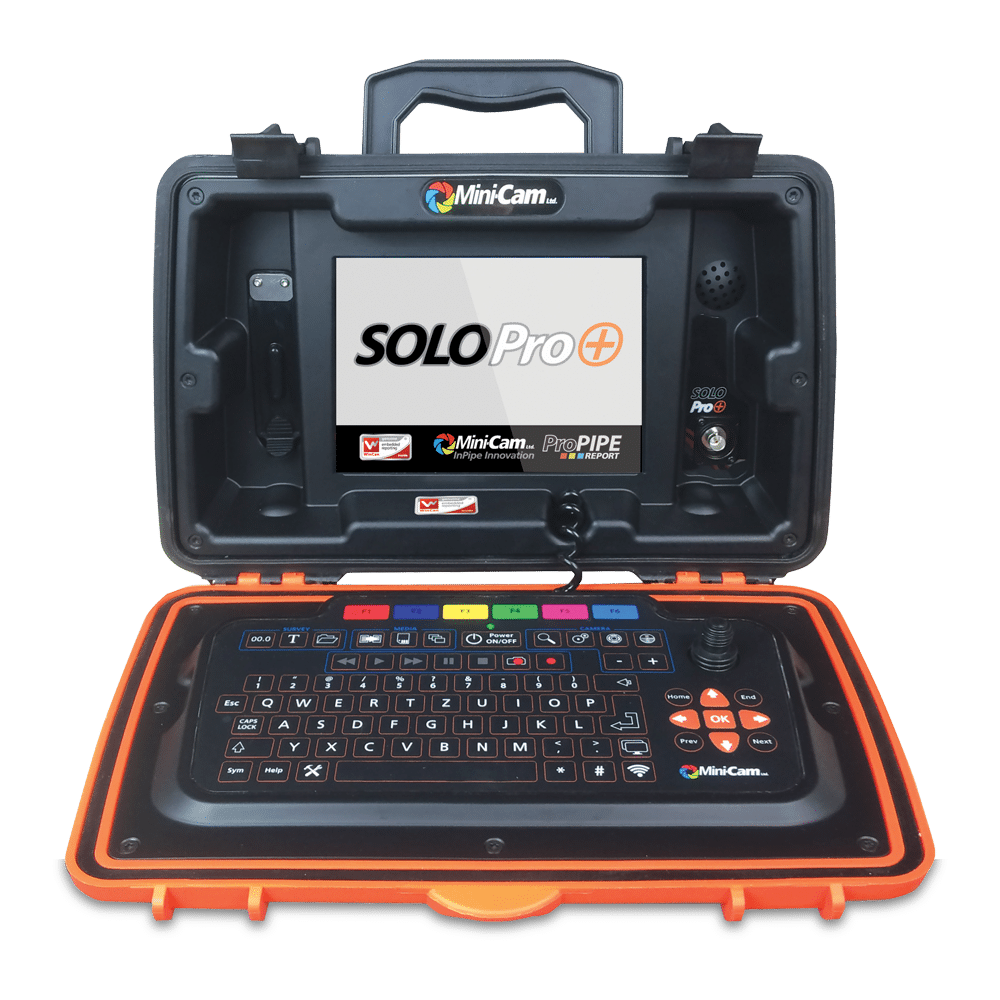

SOLOPRO+ Control Unit

CCU210

Feature rich, the SOLOPro+ Control Unit has an integral joystick for camera control and an ergonomic soft-touch keypad. User friendly multi-function hot keys control an intuitive on-screen display, to enable quick and accurate navigation of the numerous features which all come as standard on the brain of the SOLOPro+ system.

SOLOPRO+ Control Unit

Key features

Illumination

Increase or decrease the intensity of the ultra-bright camera LEDs.

Survey Features

Access embedded reporting software to create detailed on-site reports.

SONDE Settings

Set the frequency of the SONDE transmitter to 33kHz, 512Hz or 640Hz.

Hot Keys

User friendly, multi-function hot keys control an intuitive on-screen display of the numerous features.

Alternative Languages

The SOLOPro+ CCU is currently available with keyboards in English, French, German and Russian.

Write Screen Text

Type and store up to 16 pages of on-screen text. Customise text colour, position and background colour.

Generate Reports

Use optional reporting module to create an inspection report, then transfer it to USB media for on-site delivery

Offload Data

Copy video, images and data to USB or SDHC media for easy transfer to PC and seamless integration with WinCan reporting and querying capabilities.

Screen Intensity

The brightness, colour and backlight intensity of the internal display can be adjusted to suit the environment in which the system is being used.

Joystick Control

The left hand joystick controls crawler manoeuvrability. Movement of the Pan, Rotate camera is smooth and effortless using the right hand joystick control. Perform a 360º p endless rotation and pan the camera +/- 135º.

Share Files

WiFi enabled to allow remote access to stored images and data. Users can instantly share PDF reports, images and footage via email, or upload WinCan Reports via the Cloud to WinCan Web for secure, immediate team-wide access online.

Configure Preferences

Easily and quickly configure the control unit to your specific requirements using the various menu options. Set language, date and time; establish file formats and naming conventions; adjust camera parameters; choose interface theme, enable power saving options and update firmware.

Specification

Download specification
  • Dimensions (LxHxW)

    435 x 250 x 140mm

  • Weight

    3.85kg (8.5lbs)

  • Display

    8” TFT LDC (800x600 pixels) Sunlight viewable

  • Internal Memory

    32GB (expandable to 128GB)

WiFi Enabled

Sunlight Viewable Display

Lithium-Ion Battery

WinCan Embedded Software

ProPIPE+ Reporting

File Sharing

Available in ATEX Zone 1
